Advertising Robot and Disinfection Robot 2 in 1 Series

Smart Advertising Robot & Intelligent Disinfection robot 2 in 1 XG-1 Series

Based on the SLAM technology innovation, the intelligent advertising robot combines a number of unique algorithm innovations and scene engineering applications to develop a vision-based navigation solution that integrates single-line radar, ultrasonic and other multi-sensor navigation solutions. Intelligent advertising and publicity robot products that operate stably in a large-scale environment. The design inspiration is derived from the cutting elements of the Tesla concept car. It reflects the sense of future technology in a simple, tough and dignified style.

Product core function introduction

• Disinfection and sterilization of new S-RCD technology
• S-RCD is the slow-release chlorine dioxide technology, the effective ingredient is chlorine dioxide (ClO2)
• Chlorine dioxide is an internationally recognized safe and non-toxic green disinfectant
• Can coexist with people without isolation, continue to kill steadily for 1~2 months
• The disinfection efficiency is as high as 99.9%
• Autonomous cruise killing, efficient coverage of large scenes
• The product has been tested by the international authoritative inspection and certification agency SGS, and the results show that: the disinfection and sterilization gel is non-toxic and harmless, and has no irritation to the human body

Product parameters
Overall size (mm): 720 (L) *710 (W) *1615 (H)
Total weight: 120KG
Ground clearance: 52mm
Shell material: Sheet metal + plastic
Applicable scene: Indoor
Walking range: 50,000 square meters

Disinfection parameters
Disinfection rate: 99.9%
Release concentration: 0.01ppm-0.3ppm (controllable)
Maximum use time: 60 days
Disinfection method: Gas volatile sustained release
Active ingredients: Chlorine dioxide (ClO2) is commonly used for disinfection of drinking water, food, medical appliances, etc.

Motion parameters
Remote speed: 0~0.8m/s
Navigation speed: 0~0.8m/s
Maximum obstacle: 10mm
Maximum climb: 5°
Turning radius: Turn in place
Exercise method: Two-wheel differential + four universal wheels

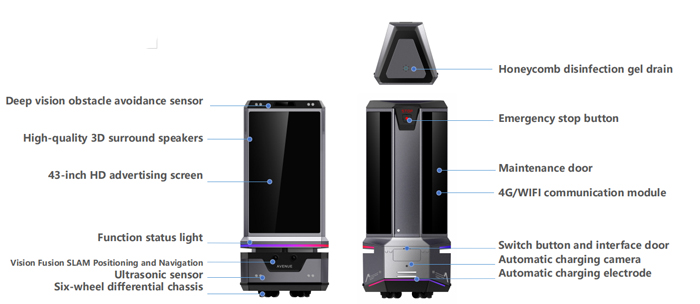

Hardware specifications
Switch: Gigabit data switch
Binocular: 30m line-of-sight module
Ultrasonic sensor: 5 pairs of high-precision dual-head ultrasonic sensors
Navigation: Integrated navigation solution
IMU pose sensor: Have
Colorful light strip: RGB full color light strip
Metal buttons: Metal self-locking*2+Reset*1
Advertising screen: 43-inch 1080P HD LCD display

Navigation obstacle avoidance system
Navigation method: Vision + Lidar + Inertial Navigation + Odometer
Control method: Autonomous navigation, remote control
Construction area: 50,000 square meters
Positioning accuracy: ±5CM
Obstacle avoidance: Lidar + ultrasonic sensor
APP: Supporting Android client

Endurance system
Type of battery: Ternary lithium iron battery
Battery capacity: 48V/30Ah
Battery life: 4h
Charging time: 4h
